DETECTOR

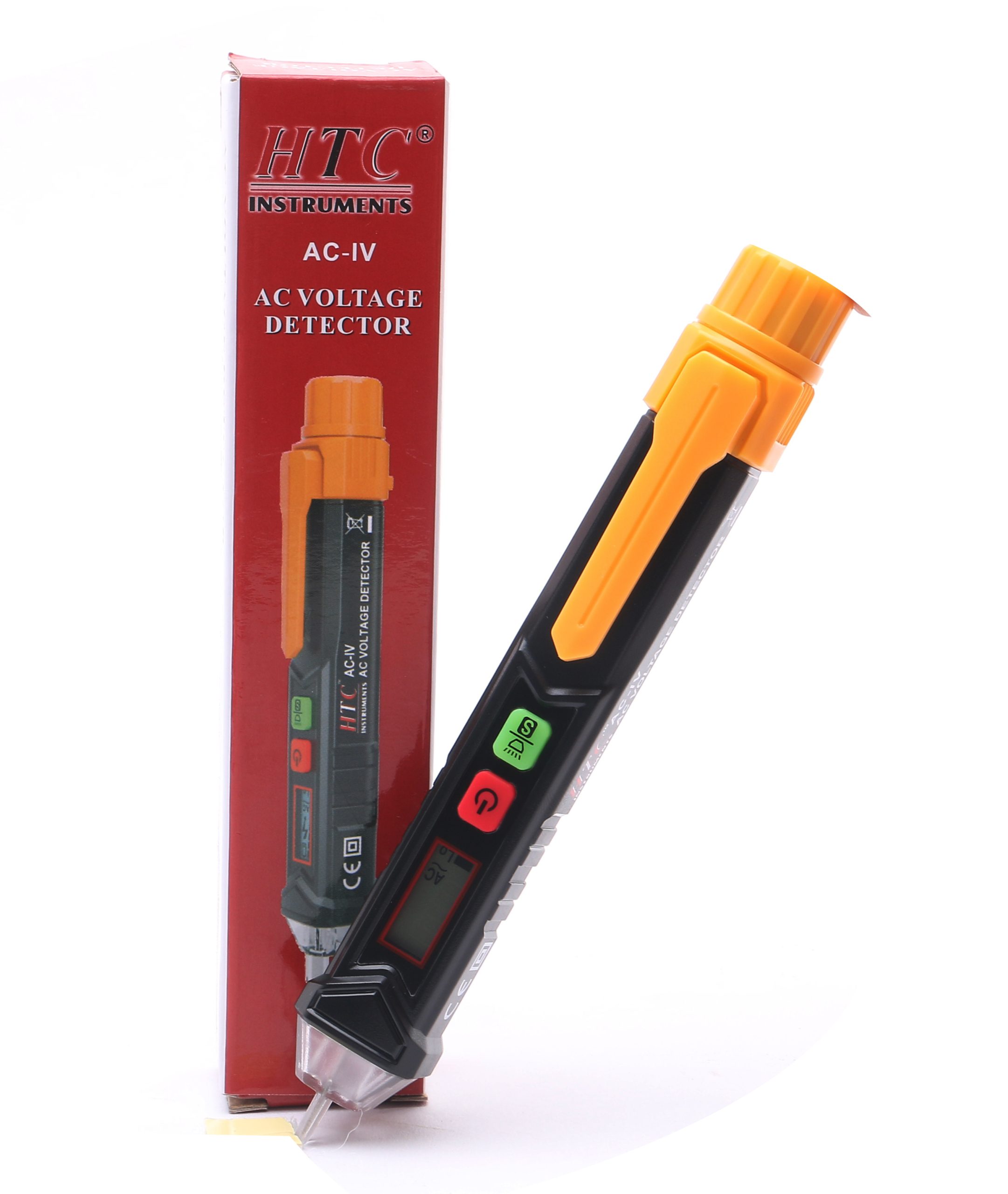

HTC AC IV Pen Type AC Voltage Detector with Display
SPECIFICATIONS
- VOLTAGE RANGE : High 12 ~ 1000V / Low 48 ~ 1000V
- IP- Protection : IP-40
- Overvoltage Category : CAT III, 1000V
FEATURES
- Display LCD with Bargraph
- Backlight Red & Green Double Colour
- Signal Intensity four level
- Flash Light No operation sensing signal will shutdown
- Auto Power Off (APO 3 minutes)
- POWER: AAA 1.5V X 2
- Dimension : 157(H) x 27W) x 23(D)mm
- Weight : Approx 32 g
Compare
HTC AC IV Pen Type AC Voltage Detector with Display is a great product for those who are looking for an easy and convenient way to detect voltage. This product is easy to use and comes with a display that makes it easy to read. HTC AC Measurement & Testing Voltage Detector Pen is a great choice for those who are looking for a reliable and accurate voltage detector. It is easy to use and it comes with a clear digital display that makes it easy to read the results. The dimensions of the pen are 157x27x23 mm and it has an IP-40 rating. The frequency range of the pen is 50 to 60 Hz.
Brand
HTC
Based on 0 reviews
Be the first to review “HTC AC IV Pen Type AC Voltage Detector with Display”
